Provide high-quality bearing products to customers around the world.

RNA, NK type needle roller bearings, this type of bearing has no inner ring, it is suitable for the support structure with limited radial installation size, and the journal matched with the bearing is directly used as the rolling surface. As the shaft of the raceway surface, the hardware must be hardened and ground, and only when it is processed to the appropriate size and shape accuracy, the entire set of needle roller bearings can have a high life and running accuracy. At the same time, since there is no inner ring, the diameter of the shaft can also be appropriately enlarged, thereby increasing the rigidity.

Bearing Number	Dimensions （mm）
RNA4822A	120×140×30
RNA49/8A	10×19×11
RNA49/9A	12×20×11
RNA4900A	14×22×13
RNA4901A	16×24×13
RNA4902A	20×28×13
RNA4902AF	20×28×13
RNA4903A	22×30×13
RNA4904A	25×37×17
RNA4905A	30×42×17
RNA4906A	35×47×17
RNA4907A	42×55×20
RNA4907A/AS4	42×55×20
RNA4907AF1	42×55×20
RNA4908A	48×62×22
RNA4909A	52×68×22
RNA4909AF1	52×68×22
RNA4910A	58×72×22
RNA4910A/YB2	58×72×22
RNA4911A	63×80×25
RNA4912A	68×85×25
RNA4913A	72×90×25
RNA4914A	80×100×30
RNA4915A	85×105×30
RNA4916A	90×110×30
RNA4917A	100×120×35
RNA4918A	105×125×35
RNA4919A	110×130×35
RNA4920A	115×140×40
RNA4922A	125×150×40
RNA4924A	135×165×45
RNA59/7A	10×17×15
RNA59/8A	12×19×15
RNA5900A	14×22×16
RNA6901A	16×24×22
RNA6901	16×24×22
RNA6902	20×28×23
RNA6903	22×30×23
RNA6904	25×37×30
RNA69/22	28×39×30
RNA6905	30×42×30
RNA69/28	32×45×30
RNA6906	35×47×30
RNA6901AF1	16×24×22
RNA6902A	20×28×23
RNA6903A	22×30×23
RNA6904A	25×37×30
RNA6905A	30×42×30
RNA6905ATN1	30×42×30
RNA6905AF1A	30×42×30
RNA6906A	35×47×30
RNA49/7X2A	10×17×12
RNA4905X2A	30×42×20
RNA49/38X3A	45×55×22
RNA4908X2A	45×62×24
RNA4908X3A
RNA4952X3A	55×68×25
RNA59/7X2A	10×17×15
RNA59/8X2A	12×19×15
RNA5902X3A	19×27×16
RNA5904X3A	25×35×25
RNA5908X3A	50×65×34
RNA59/38X3A	50×65×35
RNA6903X2A/AS1	45×55×32
RNA5001X3A	16×27×25
RNA5001X2A	20×28×20
RNA5002X2A	18×32×25
RNA5003X2A	22×35×25
RNA5006X3A	45×55×32
RNA5007X1A	50×64×36
RNA6001X2A	20×28×25
RNA6001X2L1A	20×28×25
RNA6002X1A	18×33×30
RNA6002X1ATN1	18×33×30
RNA6/37A	37×52×22
NK16/16A	16×24×16
NK16/20A	16×24×20
NK16/20AF1	16×24×20
NK14/16A	14×22×16
NK20/20A	20×28×20
NK20/25A	20×28×25
NK22/20A	22×30×20
NK25/16A	25×33×16
NK25/20A/ASI	25×33×20
NK32/20A	32×42×20
NK55/25A	55×68×25
RNA2913/YA4	75×90×16
RNA4822	120×140×30
RNA4824	130×150×30
RNA4826	140×165×35
RNA4838M/YA5	210×240×50
RNA49/8	10×19×11
RNA4900	14×22×13
RNA4901	16×24×13
RNA4902	20×28×13
RNA4903	22×30×13
RNA4904	25×37×17
RNA49/22	28×39×17
RNA4905	30×42×17
RNA49/28	32×45×17
RNA4906	35×47×17
RNA49/32	40×52×20
RNA4907	42×55×20
RNA4908	48×62×22
RNA4909	52×68×22
RNA4910	58×72×22
RNA4911	63×80×25
RNA4912	68×85×25
RNA4913	72×90×25
RNA4914	80×100×30
RNA4915	85×105×30
RNA4916	90×110×30
RNA4917	100×120×35
RNA4918	105×125×35
RNA4919	110×130×35
RNA4920	115×140×40
RNA4922	125×150×40
RNA4924	135×165×45
RNA4926	150×180×50
RNA4928	160×190×50
RNA4002	20×32×17
RNA4004	26×42×22
RNA4004/S0	26×42×22
RNA4005	34×47×22
RNA4006	40×55×25
RNA4007/YA4	45×62×27
RNA4007	46×62×27
RNA4008	52×68×28
RNA4009	57×55×30
RNA4010	62×80×30
RNA4011	70×90×35
RNA48/9X2	17×25×16
RNA4805X3	32×38×11
RNA4811X2	60×72×16
RNA6804X3	25×32×28
RNA6807X3	38×48×25
RNA49/8X2	12×19×12
RNA49/8X3	10×17×12
RNA49/8X3TN	10×17×12
RNA49/9X3	12×19×12
RNA4907X2	40×55×22
RNA49/42X3	50×65×25
RNA4909X3	50×65×25
RNA49/52X3	60×72×25
RNA6901X3	16×22×20
RNA69/22X3	28×40×32
RNA6906X1	35×57×30
RNA6910X3	56×70×50
RNA6910X3-1	56×70×45
RNA3002X2	20×32×12
RNA50/28X1	35×51×32
RNA5007	40.7×62×36
RNA5007X3	42×65×32
RNA5008X3	48.3×72×40
RNA6/15	15×25×12
RNA6/17	17×30×12
RNA6/18	18×26×20
RNA6/19.2	19.2×30×23
RNA6/24	24×42.86×25.6
RNA6/26P5	26×60×34
RNA6/28	28×45×19
RNA6/28X1-3	27.1×42×22
RNA6/32	32×50×35
RNA6/34ASI	34×50×35
RNA6/34.4	34.4×52×32
RNA6/445	44.5×58.7×19
RNA6/76.2	76.2×95.25×44.45
NK6/12TN	6×12×12
NK8/12P6S1	8×15×12
NK8/12TN	8×15×12
NK8/16TN	8×15×16
NK9/12	9×16×12
NK14/16	14×22×16
NK14/20	14×22×20
NK15/12	15×25×12
NK15/16	15×23×16
NK15/20	15×23×20
NK16/16	16×24×16
NK16/20	16×24×20
NK16/22	16×24×22
NK17/16	17×25×16
NK18/20	18×26×20
NK19/16	19×27×16
NK19/20	19×27×20
NK20/12	20×33×12
NK20/16	20×28×16
NK20/20	20×28×20
NK21/20	21×29×20
NK22/16	22×30×16
NK22/20	22×30×20
NK22/20TN	22×30×20
NK24/16	24×32×16
NK24/20	24×32×20
NK25/16	25×33×16
NK25/20	25×33×20
NK25/30	25×33×30
NK26/16	26×34×16
NK26/20	26×34×20
NK28/20	28×37×20
NK28/30	28×37×20
NK29/20	29×38×20
NK29/30	29×38×30
NK30/20	30×40×20
NK30/30	30×40×30
NK32/20	32×42×20
NK32/30	32×42×30
NK35/20	35×45×20
NK35/30	35×45×30
NK37/20	37×47×20
NK37/30	37×47×30
NK38/20	38×48×20
NK38/30	38×48×30
NK40/20	40×50×20
NK40/30	40×50×30
NK42/20	42×52×20
NK42/30	42×52×30
NK43/20	43×53×20
NK43/30	43×53×30
NK45/20	45×55×20
NK45/30	45×55×30
NK45/40	45×65×40
NK45/54	45×60×54
NK47/20	47×57×20
NK47/30	47×57×30
NK50/25	50×62×25
NK50/27/YA	50×67×27
NK50/35	50×62×35
NK55/25	55×68×25
NK55/35	55×68×35
NK60/25	60×72×25
NK60/35	60×72×35
NK65/25	65×78×25
NK65/35	65×78×35
NK65/35/ASI	65×78×35
NK68/25	68×82×25
NK68/35	68×82×35
NK70/25	70×85×25
NK70/25/YA	70×85×25
NK70/35	70×85×35
NK73/25	73×90×25
NK73/35	73×90×35
NK75/25	75×92×25
NK75/35	75×92×35
NK80/25	80×95×25
NK80/35	80×95×35
NK80/60	80×170×60
NK85/25	85×105×25
NK85/35	85×105×35
NK90/25	90×110×25
NK90/35	90×110×35
NK95/26	95×115×26
NK95/36	95×115×36
NK100/26	110×120×26
NK100/36	110×120×36
NK105/26	105×125×26
NK105/36	105×125×36
NK110/30	110×130×30
NK110/40	110×130×40
RNAP4005X3	30×46×23
RNAP6/26	26×60×34
RNAP6/32	35×60×34
RNA4912B	70×85×20
RNA4004B	27.1×42×22
RNA50/28B	34.4×52×32
RNA5007B	40.7×62×36
RNA5900X3B	14×21×17
RNA5006X3B	38×56×38
RNA6801X2B	15×21×17
RNA6902X1B	19.2×30×23
RNA69/42X1B	48.3×72×40
RNA6/175X3Q1	175×245×160

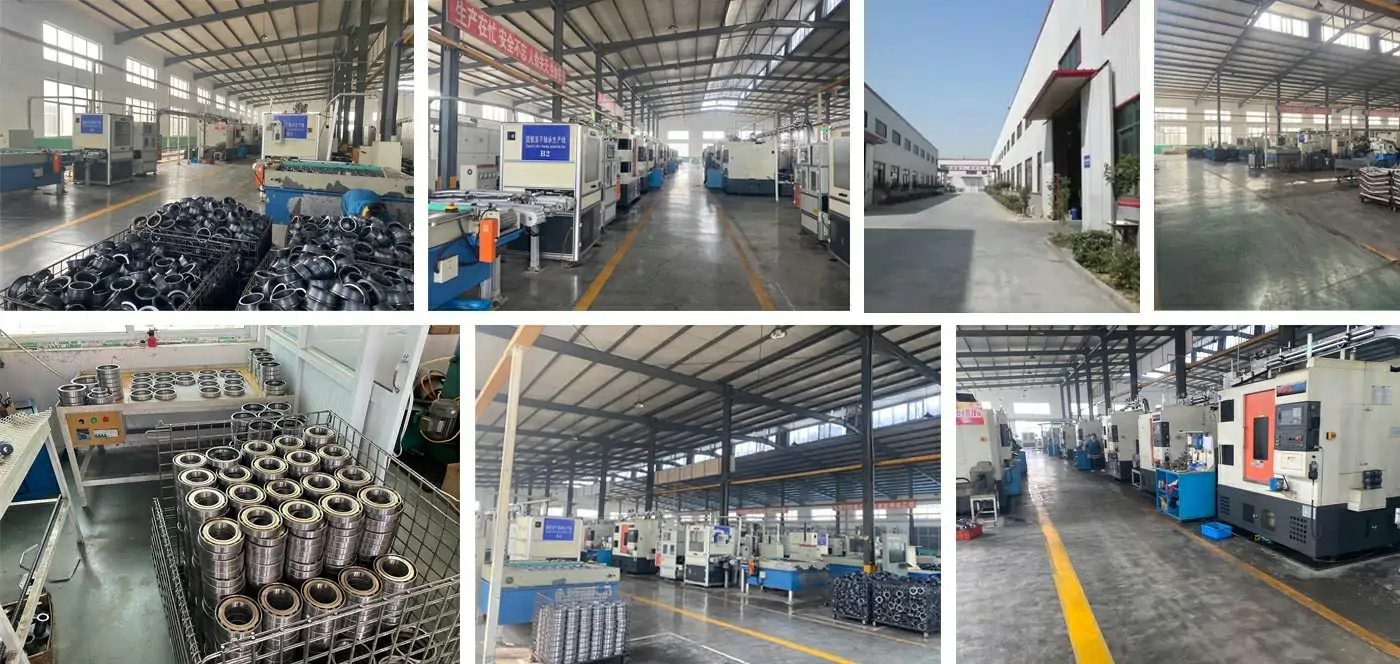

Factory Appearance

The company mainly produces deep groove balls, self-aligning balls, cylindrical rollers, tapered rollers, automobile wheels, needle roller bearings, spherical bearings and other bearing series. The products are widely used in precision machine tools, grinders, motors, hydraulic pumps and valves and other industries.

Packing And Delivery

We will choose the best shipping method to deliver the product to you based on the quantity of products you purchase.

Customer Visit

From raw material procurement to production and manufacturing, a series of strict management and control systems have been formed to ensure product quality.
